Boxo Payments

Introduction

Boxo Payments is an integrated in-app payment solution that enables users of host apps to securely make payments for orders directly within a miniapp. By leveraging the Boxo platform, it simplifies the payment process, allowing users to complete transactions seamlessly without leaving the host app environment. This functionality ensures a smooth and secure payment experience for users, while providing miniapp developers with an easy-to-integrate solution for handling payments within their services.

Boxo Payments flow

Here is diagram showcasing the payment of miniapp’s order with the host app’s payment system Payments

Here is the streamlined process for handling payment in a Boxo Miniapp:

User reaches the payment page in the Miniapp and proceeds to create an order.
Miniapp server creates the order and sends a createOrderPayment request to the Boxo Platform.
Boxo Platform initiates the payment request on the Host app server.
Host app server returns the orderPaymentID to the Boxo Platform.
Boxo Platform returns the orderPaymentID to the Miniapp server.
Miniapp server sends the orderPaymentID to the Miniapp.
The Miniapp passes the orderPaymentID to the Boxo JS SDK pay method.
The Boxo Native SDK listens for the pay event triggered by the Boxo JS SDK and displays the payment confirmation page to the user.
User confirms the payment on the payment confirmation page.
The Host app handles the payment and sends the payment status back to the Boxo JS SDK pay event.
- During payment processing, the Host app server sends a callback to the Boxo Platform to update the order in the Miniapp backend.
The Miniapp handles the payment status event from the Boxo JS SDK and updates the order payment status in the Miniapp server.
Miniapp confirms the order payment status.
- If the order is still processing, the Miniapp will request the payment status from the Boxo Platform, which in turn will request the payment status from the Host app server.
Finally, the Miniapp shows the order payment status page to the user.

Setting up the backend

Note: Feature must be enabled in Dashboard Partnership PaymentEnabled

Data format Currently, the Boxo platform uses JSON format for data exchange. When working with decimals, they are represented as either float, number, or string, with a maximum of 20 digits and 2 digits after the decimal point. Additionally, the data type definitions include limits on the size of strings, ensuring consistent and manageable data structures across systems.

1. “Create Order Payment” Request

This endpoint is on Boxo platform. Send request to create order payment (see step 2 in diagram). URL and METHOD: This is HTTPS POST /api/v1/orders/create-order-payment/ endpoint IP address of requesting services must be provided in Dashboard for whitelisting or Request Signaturing must be enabled Headers

Key	Value
Content-type	`application/json`

Body:

Field	Data type	Optional	Description
app_id	String	No	Miniapp identifier
client_id	String	No	Hostapp identifier
order	OrderDetails	No	Order info (amount, currency and etc.)

Here is the data for OrderDetails, OrderItem, and OrderShippingAddress in a clean, well-structured format: OrderDetails

Field	Data Type	Optional	Description
`currency`	String(20)	No	Order amount currency
`amount`	Decimal	No	Order amount
`subtotal_amount`	Decimal	Yes	Subtotal amount of the order
`shipping_amount`	Decimal	Yes	Shipping cost
`discount_amount`	Decimal	Yes	Discount applied on the order
`tax_title`	String(250)	Yes	Title of the tax applied
`tax_amount`	Decimal	Yes	Tax amount
`taxes_included`	Bool	Yes	Indicates whether taxes are included
`note`	String	Yes	Additional notes for the order
`miniapp_order_id`	String(250)	Yes	Order reference in the miniapp
`hostapp_user_id`	String(250)	Yes	User reference in the host app
`items`	OrderItem[]	Yes	List of items purchased in the order
`shipping_address`	OrderShippingAddress	Yes	Shipping address information
`custom_attributes`	JSON	Yes	Custom attributes for the order

OrderItem

Field	Data Type	Optional	Description
`product_name`	String(250)	Yes	Name of the product
`product_variant_name`	String(250)	Yes	Name of the product variant
`product_sku`	String(250)	Yes	Product SKU
`product_image_url`	String(250)	Yes	URL of the product image
`quantity`	Integer	Yes	Quantity of the product in the order
`price`	Decimal	Yes	Price of the product
`discount`	Decimal	Yes	Discount applied to the product

OrderShippingAddress

Field	Data Type	Optional	Description
`address1`	String(1000)	Yes	Address line 1
`address2`	String(1000)	Yes	Address line 2
`first_name`	String(250)	Yes	First name of the recipient
`last_name`	String(250)	Yes	Last name of the recipient
`phone`	String(250)	Yes	Phone number of the recipient
`region_name`	String(100)	Yes	Name of the region or state
`region_code`	String(100)	Yes	Code of the region or state
`province_name`	String(250)	Yes	Name of the province
`province_code`	String(250)	Yes	Code of the province
`city`	String(250)	Yes	City of the recipient
`country`	String(250)	Yes	Country of the recipient
`postal_code`	String(250)	Yes	Postal code of the recipient
`latitude`	Decimal	Yes	Latitude of the shipping address (up to 15 digits after the decimal)
`longitude`	Decimal	Yes	Longitude of the shipping address (up to 15 digits after the decimal)

Decimal Limits for Coordinates:

Latitude: Max value: 90, Min value: -90, max 17 digits with 15 digits after the decimal point.
Longitude: Max value: 180, Min value: -180, max 18 digits with 15 digits after the decimal point.

Response:

Response status will be 400 in case there is error_code
Response body:

Field	Data type	Optional	Description
order_payment_id	String(250)	Yes	Order payment identifier
error_code	String	Yes	If some error is occured error code should be provided. Example: `{"error_code": "INVALID_ORDER_DATA"}` All error codes can be found here

Request Example:

    curl --location --request POST '[BOXO_PLATFORM_SERVER_URL]/api/v1/orders/create-order-payment/'\
    --header 'Content-Type: application/json' \
    --header 'Authorization: Basic {{BASE64_ENCODED_CLIENT_ID_AND_CLIENT_SECRET}}' \
    --data-raw '{
        "app_id": "{{MINIAPP_ID}}",
        "client_id": "{{CLIENT_ID}}",
        "order": {
            "amount": "100.00",
            "currency": "USD",
            "miniapp_order_id": "{{ MINIAPP_ORDER_ID }}",
            "hostapp_user_id": "{{ HOSTAPP_USER_ID }}"
        }
    }'

Response Example:

    {
        "order_payment_id": "8X566iHGnpUxHXPX3FH0iDsXUVn9ku16xJGQ"
    }

    {
        "error_code": "UNKNOWN_ERROR",
        "error_message": "Unknown error. Please try again later."
    }

2. “Get Order Payment Status” Request

This endpoint is on Boxo platform. Send request to get order payment status (see “Check order status” step in diagram). URL and METHOD: This is HTTPS POST /api/v1/orders/get-payment-status/ endpoint IP address of requesting services must be provided in Dashboard for whitelisting or Request Signaturing must be enabled Headers:

Key	Value
Content-type	application/json

Body:

Field	Data type	Optional	Description
app_id	String	No	Miniapp identifier
client_id	String	No	Hostapp identifier
order_payment_id	String(250)	No	Order payment identifier

Response:

Response status will be 400 in case there is error_code
Response body:

Field	Data type	Description
order_payment_id	String	Order payment identifier
app_id	String	Miniapp identifier
client_id	String	Hostapp identifier
payment_status	String	Order payment status: `in_process\| paid\| cancelled \|failed`
payment_fail_reason	String	Order payment fail reason
error_code	String	Error code. Example: `{"error_code": "ORDER_NOT_FOUND"}` All error codes can be found here

Request Example

    curl --location --request POST '[BOXO_PLATFORM_SERVER_URL]/api/v1/orders/get-payment-status/'\
    --header 'Content-Type: application/json' \
    --data-raw '{
        "app_id": "{{MINIAPP_ID}}",
        "client_id": "{{CLIENT_ID}}",
        "order_payment_id": "{{ORDER_PAYMENT_ID}}"
    }'

    {
        "order_payment_id": "{{ORDER_PAYMENT_ID}}",
        "app_id": "{{MINIAPP_ID}}",
        "client_id": "{{CLIENT_ID}}",
        "payment_status": "failed",
        "payment_fail_reason": "Payment amount exceeds user's amount limit."
    }

    {
        "error_code": "ORDER_NOT_FOUND",
        "error_message": "No Order matches the given query."
    }

3. Webhook “Complete Order Payment” Endpoint

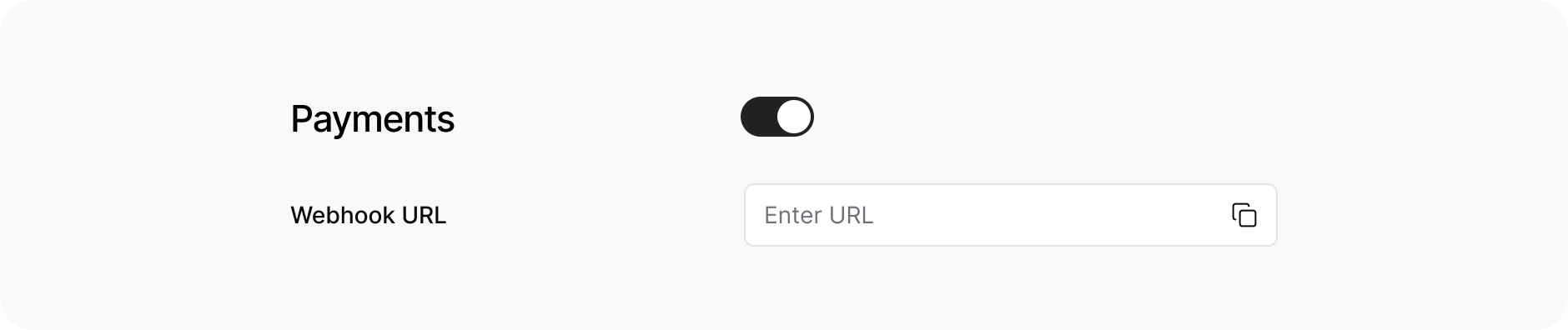

Setup this endpoint for Boxo platform to complete order payment(see step after 10 in diagram). URL and METHOD: This endpoint must handle a HTTPS POST request URL to endpoint must be provided in Dashboard Payments_miniApp

We suggest to whitelist our IP addresses for this endpoint.

Headers:

Key	Value
Authorization	Basic `<base64 encoded(app_id:secret_key)>`
Content-type	`application/json`

app_id and secret_key will be provided in Dashboard Body:

Field	Data type	Description
miniapp_order_id	String(250)	Miniapp order indentifier
hostapp_order_payment_id	String(250)	Order payment identifier
hostapp_client_id	String(250)	Hostapp identifier
payment_status	String	Order payment status: `in_process\| paid\| cancelled\| failed`
payment_fail_reason	String	Order payment fail reason
custom_attributes	JSON	Order custom attributes

Response:

Response status must be 200 in all cases
Response body:

Field	Data type	Description
code	String	Request result code example: `SUCCESS`
error_code	String	Error code

Request Example:

    curl --location --request POST '[YOUR_SERVER_URL]/api/complete-order/' \
    --header 'Authorization: Basic {{BASE64_ENCODED_APP_ID_AND_SECRET_KEY}}' \
    --header 'Content-Type: application/json' \
    --data-raw '{
        "miniapp_order_id": "{{MINIAPP_ORDER_ID}}",
        "hostapp_client_id": "{{CLIENT_ID}}",
        "hostapp_order_payment_id": "{{ORDER_PAYMENT_ID}}",
        "payment_status": "paid"
    }'

Response Example:

    {
        "code": "SUCCESS"
    }

    {
        "error_code": "ORDER_NOT_FOUND"
    }

Setting up the SDK

When the order is created payment should be handled on host app’s side. Use appboxoSdk.pay method as in example to open payment pages on host app.

const payResponse = await appboxoSdk.pay({
    amount,
    currency,
    miniappOrderId, // order reference
    transactionToken, // pass order_payment_id
    extraParams: {},
})
const { status } = payResponse
